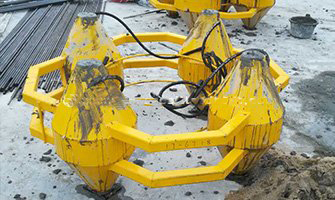

Upturn the multiple type Super Cell and put it on even ground. In the meantime, hydraulic hose, connectors of grout pipe, rod extensometers etc. on the other side should be protected. 1. Pour concrete into the upward cone-shape flow-guiding mechanism and then the downward one;when pouring concrete into the upward cone-shape flow-guiding mechanism, pour the hydraulic hose from the small hole at the side of the cone-shape flow-guiding mechanism. 2. Pour concrete into cone-shape flow-guiding mechan...

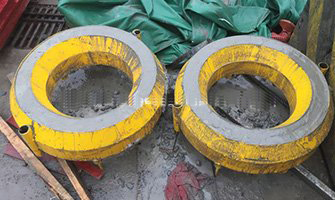

For purpose to flush out sediments from bottom of piles, load cells have to be designed to guide fluid that flows through it during concrete casting process. Here are brief introductions of the procedures to precast flow-guiding-cones on Donut-shaped Cells. 1. Upturn the donut-shaped Super Cell and put it on even ground. In the meantime, hydraulic hose, connectors of grout pipe, rod extensometers etc. on the other side should be protected. 2. Pour concrete into cone-shape flow-guiding mechanism,...

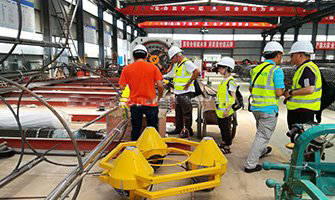

We had started off the visit with an introductory presentation of Super-Cell Technology and Super Cell, followed by a tour of the productive process of Super Cell at our production factory, and the installation procedure at our job site. The clients visit had opened up the opportunities for future cooperation in bi-directional static load test in Malaysia. ...
As a non-retrievable equipment, Super Cell has to function without any defect in order to ensure a successful load test. All Super Cells are fully pressure-tested and calibrated before ex-works delivery, with max test pressure 130% that of maximum pressure for field test. Calibration may be done by third-party internationally-accredited labs. ...
As mentioned before, Super-Cell was very fortunate to have won the bid as the sole supplier of load cells for bi-directional load test of the Indonesian Meikarta Project in April. This project is expected to consume more than 700 sets of Super Cells. The installation of Super Cells had kicked off in the third week of April. Up to this day, we have delivered 180 sets of Super Cells there yet. Our Site Engineers have finished testing ten working piles, while another 30 sets have been installed. Two mor...
